Eriez Vibratory Conveyors

Rugged, efficient, high-capacity units for the controlled movement of large volumes of bulk material.



Conveyors




Eriez Vibratory Conveyors

Eriez mechanical feeders are simple, rugged, vibrating machines designed to handle a variety of bulk materials. The conveyors are available in single-mass and two-mass vibrating systems excited by a motor-driven eccentric shaft. Springs vary according to the type of application.

The remarkable compact, straight-line design of these conveyors presents an extremely low profile yet allows for ease of maintenance. Minimum headroom is required for installation.

Features & Benefits:

  • Adjustable angle rubber springs
  • Low profile - minimum headroom
  • Flow rates to 60 ft/minute (18mpm)
  • Simple, stable, variable controller

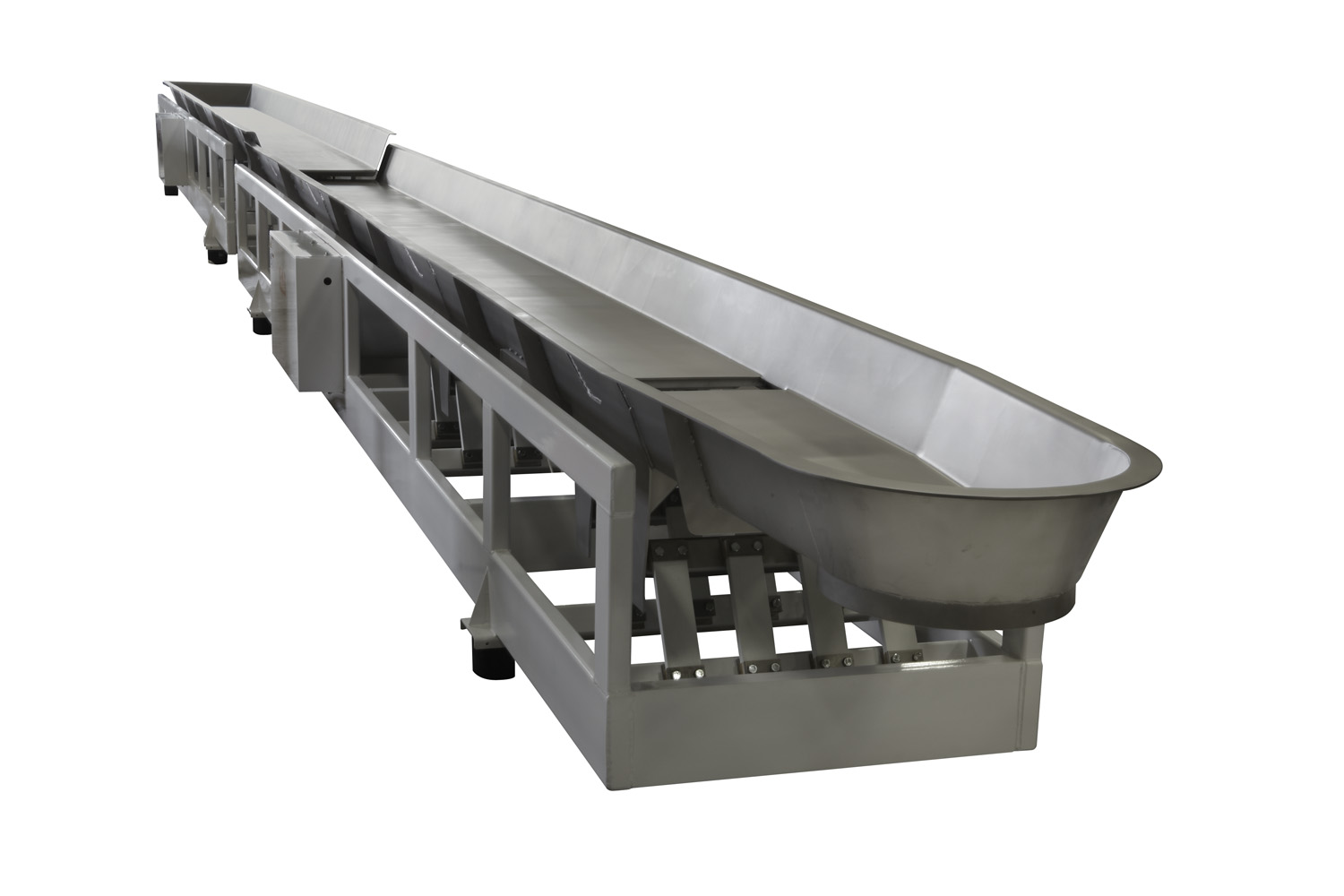

Tuned Two-Mass Model TM Vibratory Conveyor

The Eriez Model TM mechanical conveyors are powerful vibrating machines designed for moving bulk materials over long distances. These units will convey large volumes of material with simple, dependable efficiency. The Model TM conveyor is a spring-coupled, two-mass vibrating system using a motor-driven eccentric weighted shaft to provide the exciting force. Corrosion-resistant fiberglass springs transmit exciting force to the trough, and trough motion can be “fine tuned” for specific applications. The low profile and compact design of the Model TM conveyor requires minimum headroom for installation.

Features:

  • Separately mounted components for easy maintenance
  • Corrosion-resistant fiberglass springs
  • Low profile - minimum headroom
  • Simple control
  • Low power required
  • Can be designed for suspended or base mounting

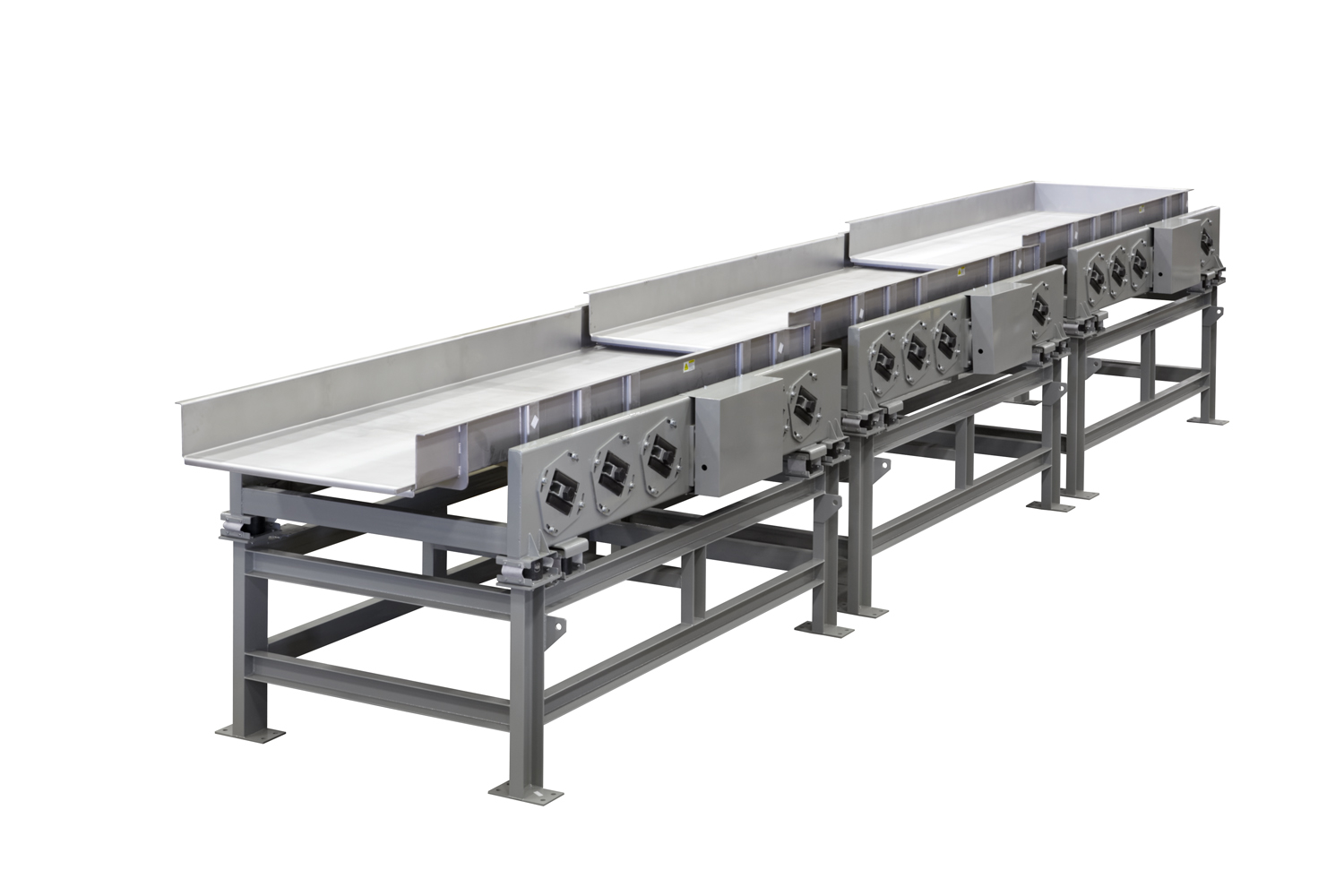

High-Volume Model HVC Vibratory Conveyor

Eriez’ Model HVC mechanical conveyors are simple, rugged vibrating machines that move high volumes of bulk materials over long distances, reliably and economically.

The conveyor is a two-mass vibrating system, spring coupled, excited by a motor-driven eccentric shaft. Adjustable-angle rubber springs – each one of which can be removed and replaced in less than two minutes if required – transmit the exciting force and can “fine tune” the motion of the trough to optimize the flow rate for a specific application.

The compact, straight-line design of the Model HVC conveyor presents an extremely low profile; minimum headroom is required for installation. Power is provided by a standard three- hase, 230/460 volt TEFC 60 Hz motor.

Economy Model SM Vibratory Conveyor

The light-duty Model SM mechanical conveyor utilizes a gentle, efficient, oscillating motion to move light loads of free-flowing materials. The conveyor is designed to provide years of dependable service to food, chemical and other industries. Simple and compact in design, it is powered by a standard foot-mounted motor, driving an eccentric shaft which excites fiberglass springs attached to the tray.

The conveyor’s framework of base assembly and conveying pan is constructed of heavy-duty steel for necessary rigidity and durability. The base is designed for solid attachment at grade level to a rigid concrete foundation or structure rather than suspension mounting.

Features:

  • Capacity of up to 18 tons per hour (16mtph) depending on tray width
  • Low profile design with minimum headroom requirements
  • Energy-saving low horsepower operation
  • Separately mounted drive components for easy maintenance
  • Simple, stable, variable speed control is vailable for special applications



For technical assistance, more information or a request for quote, please complete this form.
