Eriez Coolant Cleaners

Permanent Magnetic Coolant Cleaners

Indexing Models

Indexing Coolant Cleaners from Eriez, available with either a smooth-faced or extended- pole roll, are used when both ferrous and non-ferrous contaminants are present. No replaceable filter medium is required.

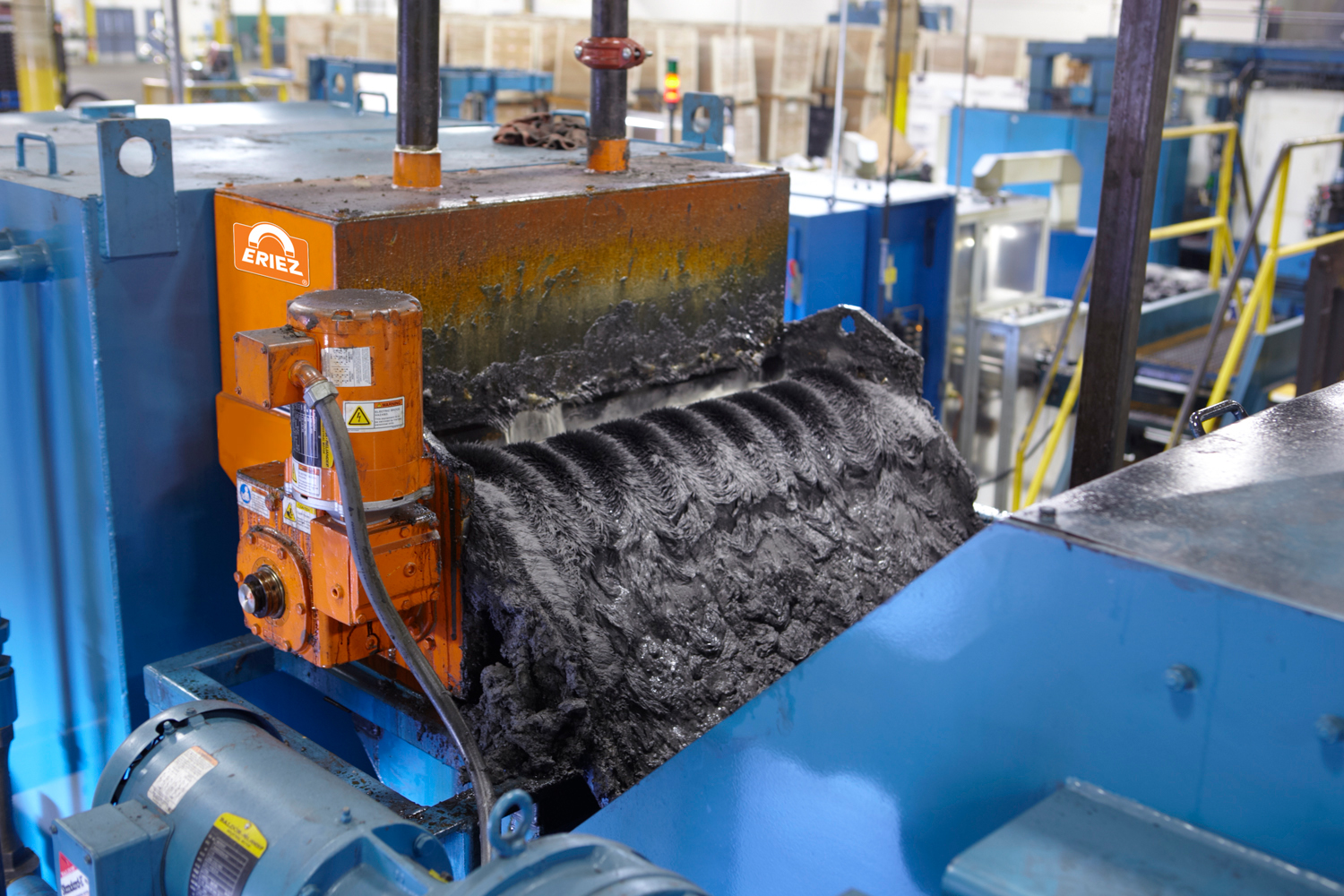

The magnetic roll, under which the coolant flows, rotates intermittently. The magnetically attracted material builds up a mass of fine hair-like particles between the magnetic roll and the housing. This accumulation serves as a filter medium to entrap fine non-magnetic particles such as grinding wheel scale or other coolant contaminates.

The mass of magnetically-held materials accumulates until it restricts the passageway between the magnetic roll and the housing, causing coolant to back up into the sump. The rising coolant level activates a pressure-type level switch; the magnetic roll is then automatically indexed forward, which moves the packed filter plug from the restricted passageway and permits coolant to once more flow through the magnetic field.

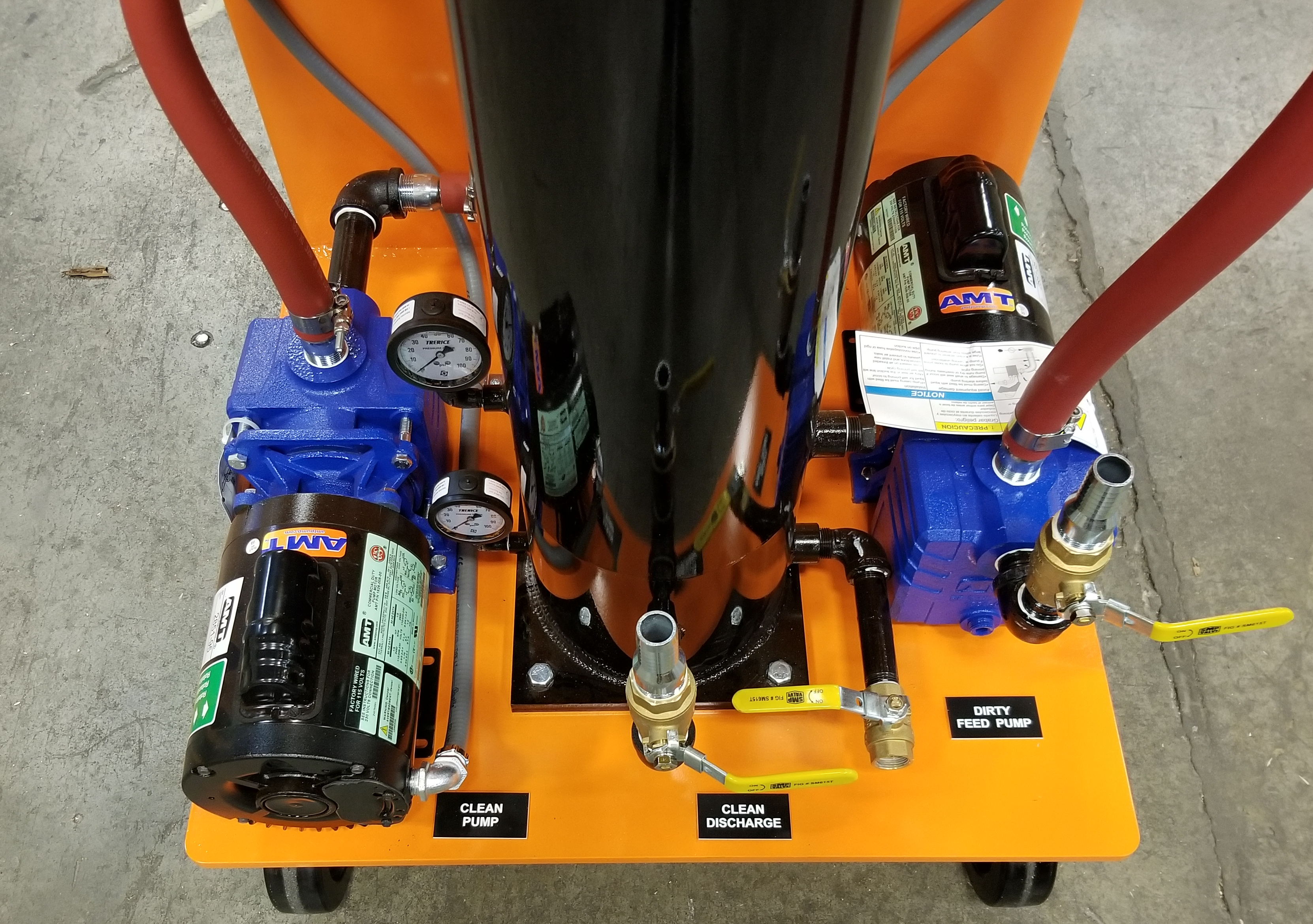

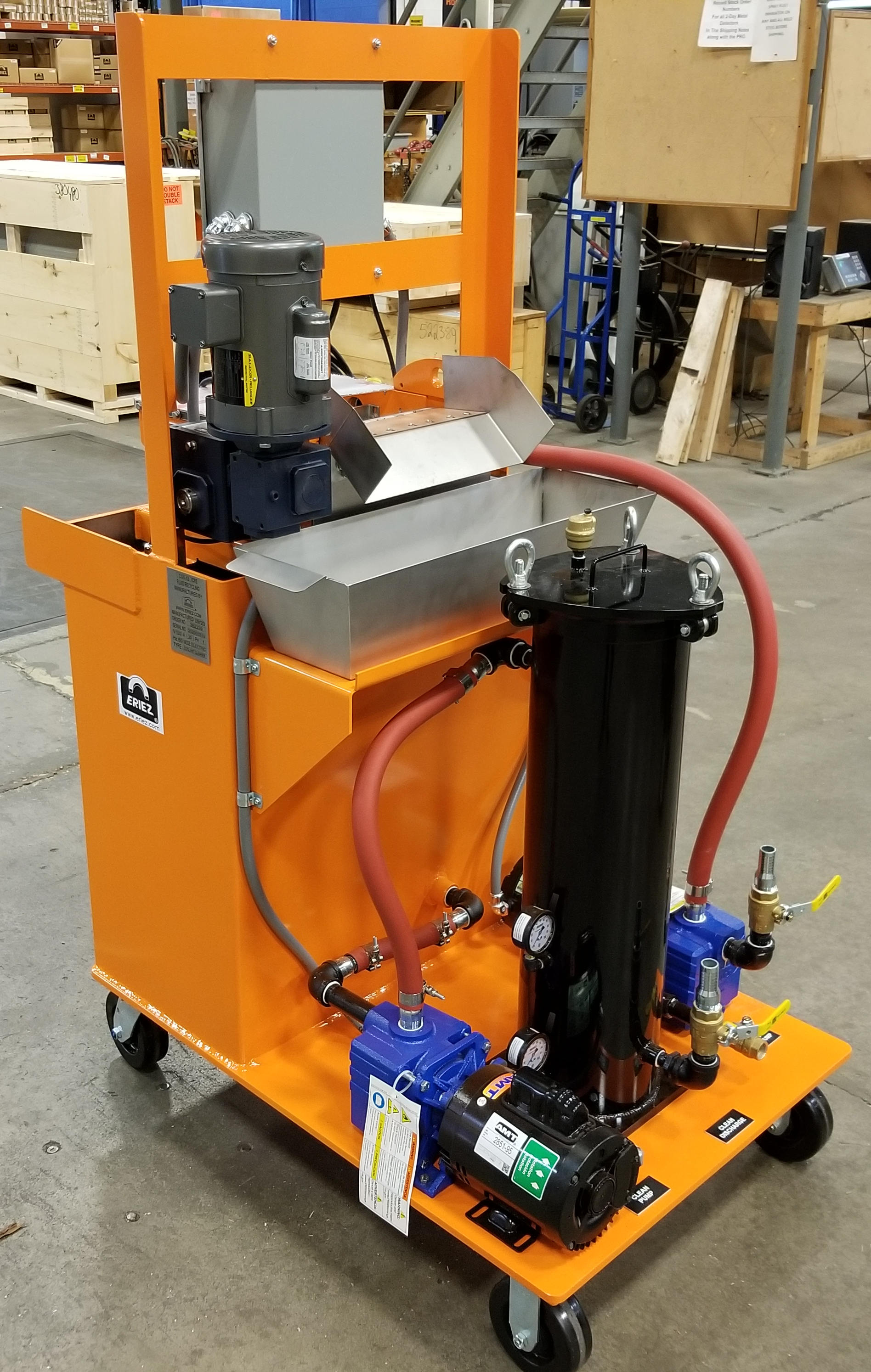

Continuously Rotating Models CS and CE

The second type of Eriez Coolant Cleaner, the continuously rotating model, is also furnished with either smooth-faced or extended-pole rolls. These units are designed for use where little or no non-magnetic material is contaminating the coolant.

Coolant fluid is gravity fed to the Eriez cleaner where it flows under the magnetic roll. The roll’s powerful permanent-magnetic field reaches out and captures ferrous contamination in the fluid. Since the roll surface is revolving against the current flow, large and small ferrous particles clinging tightly to its surface are carried upward out of the liquid. Coolant fluid drains back down into the hopper as ferrous particles are removed by the scraper blade. Chips, grindings and other contamination are scraped off the drum and deposited on the inclined scraper blades. Chips will build up on the scraper blade and slowly move to the discharge lip which slopes down to a waiting receptacle.

Rare Earth Coolant Cleaners

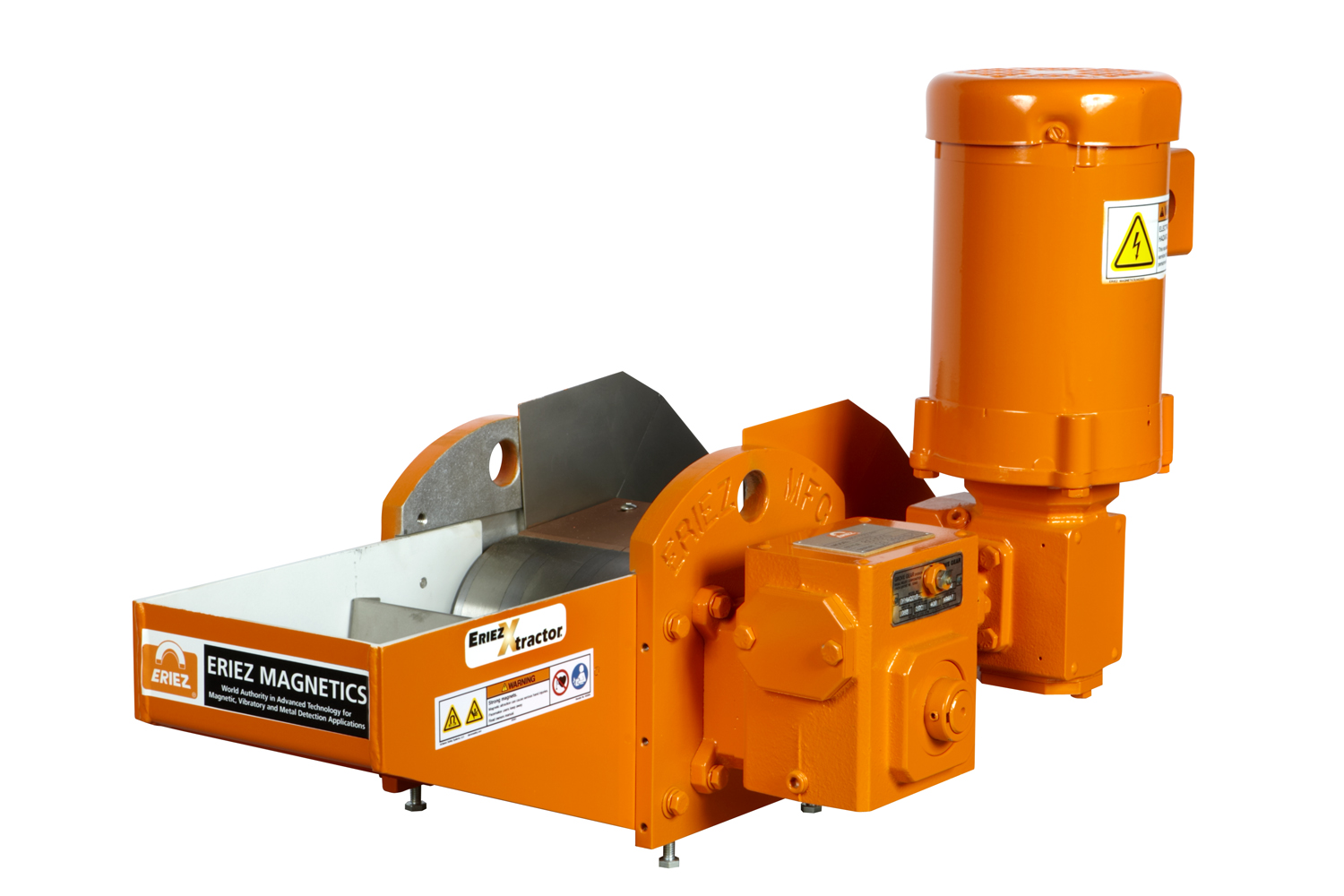

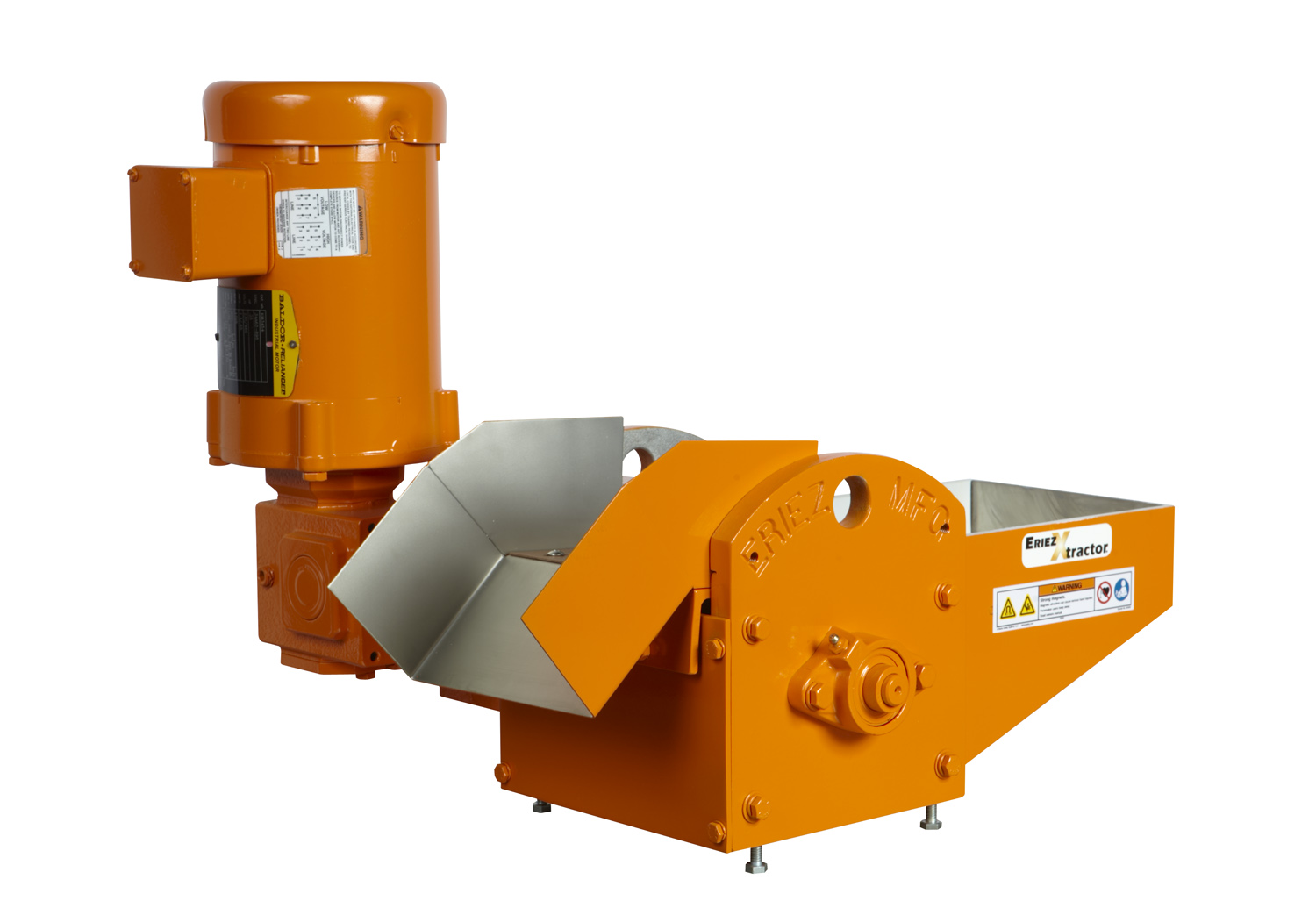

Eriez Xtractor Rare-Earth Coolant Cleaner utilizes a powerful magnetic field designed to maximize capture and remove fine ferrous particles from a coolant. Its unique magnetic-circuit design makes the separator much stronger than all other conventional permanent-magnetic separators, which use alnico or barium ferrite elements.

Available in four sizes, the unit will handle up to 30 gallons per minute of water-soluble coolant per foot of drum width (4 lpm per cm of width). Each model is powered by a standard TEFC 230/460V, 60 Hz, 3-phase motor.

Eriez Xtractor Rare-Earth Coolant Cleaners utilize a powerful magnetic- circuit design to maximize magnetic-field strength. The resulting high field provides the most effective separation response of any drum-type magnetic separator. In operation, liquid contaminated with fine-ferrous particles enters the sump area and flows past a counter-rotating magnetic drum. Particles attracted to the drum are held tight and lifted to the top, where a mechanical-discharge mechanism moves them to a discharge chute. Cleaner liquid is discharged from the bottom of the separator.
